windows 下搭建https + node.js + nginx

最近做一个微信小程序的时候因为要求所有请求都得是https的连接，服务器端https 倒是搭建好了，可本地测试没法进行啊，于是只能自己在本地搭建个https的服务。

步骤很少，和把大象放进冰箱需要的步骤一样！只需要三步：
第一步：要使用ssl，肯定需要生成证书，这里我就生成的自签名证书
第二部：安装nginx和配置ssl
第三部：用nginx反向代理到node服务端口

证书生成

安装Openssl

  1. 下载地址：http://slproweb.com/products/Win32OpenSSL.html
    （根据系统选择32位或者64位版本下载安装）。

  2. 下载完成后，进行安装，默认安装在 C:\OpenSSL-Win64文件夹中。 　　

  3. 配置环境变量。在环境变量中添加环境变量Path ：C:\OpenSSL-Win64\bin;

    自签名证书生成

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    > cd c:\ssl
    // 设置变量
    > set OPENSSL_CONF=C:\OpenSSL-Win64\bin\openssl.cfg
    > echo %OPENSSL_CONF%

    //生成server.key
    > >openssl genrsa -out server.key 4096

    //生成request文件
    > openssl req -new -key server.key -out server.csr

    //获取私钥
    > openssl x509 -req -days 730 -in server.csr -signkey server.key -out server.crt

其中，server.crt就是我们的证书，server.key就是私钥。

注意一定要设置变量OPENSSL_CONF不然会有以下错误

1
2
3
4
5
6
7
8
c:\OpenSSL-Win64\bin>openssl req -new -key server.key -out server.csr
Can't open C:\Program Files\Common Files\SSL/openssl.cnf for reading, No such file or directory
6440:error:02001003:system library:fopen:No such process:crypto\bio\bss_file.c:74:fopen('C:\Program Files\Common Files\SSL/openssl.cnf','r')
6440:error:2006D080:BIO routines:BIO_new_file:no such file:crypto\bio\bss_file.c:81:
Enter pass phrase for server.key:
unable to find 'distinguished_name' in config
problems making Certificate Request
6440:error:0E06D06A:configuration file routines:NCONF_get_string:no conf or environment variable:crypto\conf\conf_lib.c:272:

完整过程如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
D:\ssl>openssl genrsa -out server.key 4096
Generating RSA private key, 4096 bit long modulus
..............................................................................................................................................................................................................++
.................................................................................................++
e is 65537 (0x010001)

D:\ssl>openssl req -new -key server.key -out server.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:CN
State or Province Name (full name) [Some-State]:SC
Locality Name (eg, city) []:ChengDu
Organization Name (eg, company) [Internet Widgits Pty Ltd]:
Organizational Unit Name (eg, section) []:
Common Name (e.g. server FQDN or YOUR name) []:troyyang
Email Address []:yangzhoumemail@163.com

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:

D:\ssl>x509 -req -days 730 -in server.csr -signkey server.key -out server.crt
'x509' is not recognized as an internal or external command,
operable program or batch file.

D:\ssl>openssl x509 -req -days 730 -in server.csr -signkey server.key -out server.crt
Signature ok
subject=C = CN, ST = SC, L = ChengDu, O = Internet Widgits Pty Ltd, CN = troyyang, emailAddress = yangzhoumemail@163.com
Getting Private key

D:\ssl>

nginx 搭建

下载安装

从官网下载nginx 最新稳定版Stable version (非常的小，只有不到2M，我的版本号是1.12.2) http://nginx.org/en/download.html

然后根据官方文档提示解压安装

1
2
3
4
cd c:\
// unzip nginx-1.12.2.zip (可以手动解压)
cd nginx-1.12.2
start nginx

检测是否启动成功

1
2
3
4
5
6
C:\nginx-1.12.2>tasklist /fi "imagename eq nginx.exe"

Image Name           PID Session Name     Session#    Mem Usage
=============== ======== ============== ========== ============
nginx.exe            652 Console                 0      2 780 K
nginx.exe           1332 Console                 0      3 112 K

有两个进程，说明启动成功，一个进程是nginx的主进程，另一个是工作进程。

这里提一点

解压完成后，最好是不要去直接点击nginx.exe文件安装，我就被坑过，解压完成后直接点击，当时什么也没发生，只有窗体闪烁了一下。等到cmd执行start nginx时，怎么都启动不起来。后来执行nginx -s reload后就对了。原因据说是双击运行程序会改变配置文件nginx.conf，所以需要reload。

当nginx启动后，正常情况下，访问localhost应该可以的，会有nginx欢迎页面，如果没有，检查是不是IIS服务器没关，因为IIS会有可能把80端口占用

配置SSL

此时nginx只支持http，所以需要把刚才生成的自签名证书配置到nginx里，找到配置文件”C:\nginx-1.12.2\conf\nginx.conf”，然后取消下面注释并配置路径

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
server {
        listen       443 ssl;
        server_name  localhost;

        ssl_certificate      D:\ssl\server.crt;
        ssl_certificate_key  D:\ssl\server.key;

        ssl_session_cache    shared:SSL:1m;
        ssl_session_timeout  5m;

        ssl_ciphers  HIGH:!aNULL:!MD5;
        ssl_prefer_server_ciphers  on;

        location / {
            root   html;
            index  index.html index.htm;
        }
    }

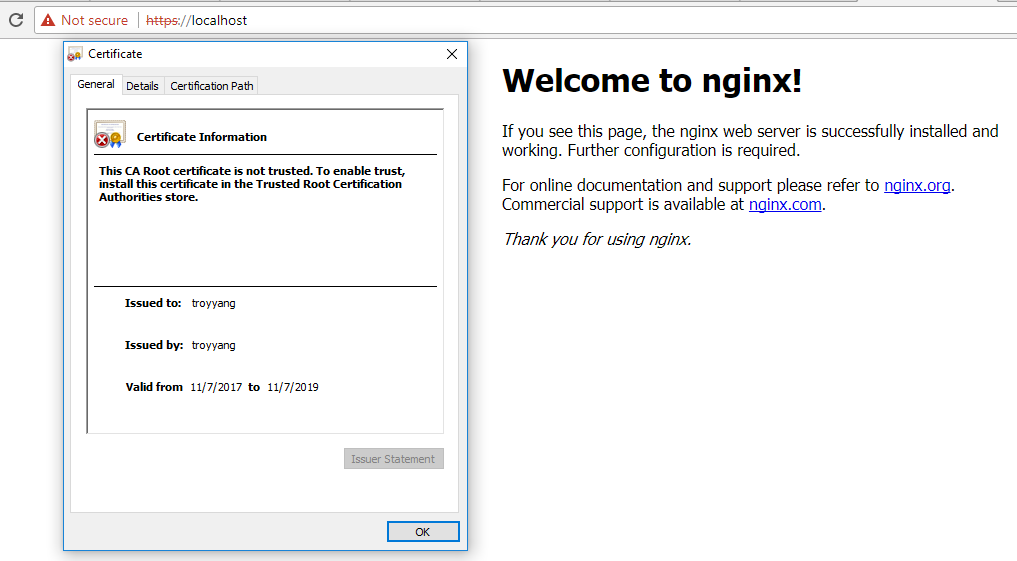

访问https://localhost就应该可以看到https安全提醒，选择继续就可以得到如下结果

反向代理Node 服务

使用express创建个最简单node服务器，端口为3000
app.js

1
2
3
4
5
6
const express = require('express')
const app = express()

app.get('/', (req, res) => res.send('Hello World!'))

app.listen(3000, () => console.log('Example app listening on port 3000!'))

运行服务并确保localhost:3000能访问到。

1
node app.js

Nginx 反向代理配置

找到上述Nginx配置文件，将443的server location 改为下面部分：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
  server {
      listen       443 ssl;
      server_name  localhost;

      ssl_certificate      D:\ssl\server.crt;
      ssl_certificate_key  D:\ssl\server.key;

      ssl_session_cache    shared:SSL:1m;
      ssl_session_timeout  5m;

      ssl_ciphers  HIGH:!aNULL:!MD5;
      ssl_prefer_server_ciphers  on;

      location / {
	proxy_pass http://localhost:3000;
}
  }

如果一切OK，访问https://localhost 会得到hello world的输出。至此，一个在windows平台上使用ssl + node + nginx的服务就搭建好了。

参考：
https://stackoverflow.com/questions/7360602/openssl-and-error-in-reading-openssl-conf-file

https://blog.didierstevens.com/2015/03/30/howto-make-your-own-cert-with-openssl-on-windows/
